Introduction¶
PyTorch is an open-source deep learning library developed by Facebook's AI Research lab. It's widely used for building and training neural networks. Here's a brief overview:
Dynamic Computation Graphs: PyTorch uses dynamic (or "eager") computation graphs, meaning the graph is built on-the-fly as operations are executed. This makes debugging and experimentation easier.
Tensors: The core data structure in PyTorch is the tensor, similar to NumPy arrays but with GPU support for faster computation.
Autograd: PyTorch has built-in automatic differentiation using
autograd
, which tracks operations on tensors and computes gradients for backpropagation.Modules and Layers: Models in PyTorch are built using the
nn.Module
class, making it easy to define complex architectures by stacking layers.Optimizers: PyTorch provides various optimization algorithms like SGD, Adam, etc., via
torch.optim
to update model weights.GPU Support: It supports CUDA for running models on NVIDIA GPUs, allowing efficient training of large models.
What is a CNN?¶
A Convolutional Neural Network (CNN) is a deep learning architecture specialized for processing grid-like data, such as images. It is highly effective for tasks like image classification, object detection, and image segmentation.
Typical CNN architectures stack convolutional layers (each followed by a ReLU layer), then a pooling layer, another few convolutional layers (+ReLU) next, followed by another pooling layer. This process can be repeated. See Figure below a:
As image progresses through the network, it gets smaller and smaller. At the top of the stack, a regular feedforward neural network is added, composed of a few fully connected layers (+ReLUs), and the final layer outputs the prediction. Figure below shows how to Flatten a 3x3 image matrix into a 9x1 vector:
Typically networks gets deeper and deeper (with more feature maps) as progress through network.
🔷 Key Components of a CNN:
Input Layer
- Takes in an image.
Convolutional Layers
- Applies filters (kernels) to scan the image and detect low-level features like edges, corners, textures.
- Produces feature maps.
- Each filter learns a different pattern.
Image retrieved from https://towardsdatascience.com/convolutional-neural-networks-explained-how-to-successfully-classify-images-in-python-df829d4ba761/
Activation Function (ReLU)
- Introduces non-linearity after convolution.
- Replaces negative values with zero:
ReLU(x) = max(0, x)
.
Pooling Layers (e.g., Max Pooling)
- Reduces the spatial size of the feature maps.
- Helps reduce computation and prevent overfitting.
- Example: 2×2 max pooling selects the largest value in each 2×2 block.
Image retrieved from https://towardsdatascience.com/convolutional-neural-networks-explained-how-to-successfully-classify-images-in-python-df829d4ba761/
Fully Connected Layers (FC)
- Flatten the feature maps and feed them into standard dense layers.
- These layers learn to make decisions based on the extracted features.
Output Layer
- Binary classification: 1 neuron + sigmoid activation.
- Multiclass classification: N neurons + softmax activation.
Classification with CNN¶
Binary Classification
- Goal: Classify input into one of two classes (e.g., cat vs not-cat).
- Workflow:
- Input: An image.
- CNN Layers: Apply convolution, ReLU activation, and pooling to extract features.
- Flatten the feature maps.
- Fully Connected Layer to combine features.
- Output Layer: Single neuron with sigmoid activation.
- Output: Probability between 0 and 1.
Multiclass Classification
- Goal: Classify input into one of multiple categories (e.g., digits 0-9).
- Workflow:
- Input: A color image (e.g., 28×28 RGB image of a handwritten digit).
- CNN Layers: Stack of convolution, ReLU, and pooling layers.
- Flatten the final feature maps.
- Fully Connected Layers to learn high-level patterns.
- Output Layer: Multiple neurons (one per class) with softmax activation.
- Output: Probability distribution across all classes.
- Prediction: Class with the highest probability.
Main Differences: | Aspect | Binary Classification | Multiclass Classification | |---------------------|---------------------------|----------------------------------| | Output Activation | Sigmoid | Softmax | | Output Neurons | 1 | Equal to number of classes | | Loss Function | Binary Cross-Entropy | Categorical Cross-Entropy |
import os
base_dir = './Data' # Directory dataset
#os.mkdir(base_dir)
# Directories for the training, validation, and test splits
train_dir = os.path.join(base_dir, 'train')
#os.mkdir(train_dir)
from torchvision.datasets import ImageFolder
import torchvision.transforms as transforms
train_dataset = ImageFolder(root=train_dir, transform=transforms)
train_dataset
Dataset ImageFolder Number of datapoints: 2000 Root location: ./Data\train StandardTransform Transform: <module 'torchvision.transforms' from 'C:\\Users\\mrezv\\anaconda3\\envs\\faiss-env\\lib\\site-packages\\torchvision\\transforms\\__init__.py'>
classes = train_dataset.classes
print(classes)
['cats', 'dogs']
print(train_dataset.class_to_idx)
{'cats': 0, 'dogs': 1}
import random
from pathlib import Path
from PIL import Image
import glob
# Set seed
random.seed(42)
# 1. Get all image paths (* means "any combination")
image_path_list= glob.glob(f"./Data/train/dogs/*.jpg")
# 2. Get random image path
random_image_path = random.choice(image_path_list)
# 3. Get image class from path name (the image class is the name of the directory where the image is stored)
image_class = Path(random_image_path).parent.stem
# 4. Open image
img = Image.open(random_image_path)
# 5. Print metadata
print(f"Random image path: {random_image_path}")
print(f"Image class: {image_class}")
print(f"Image height: {img.height}")
print(f"Image width: {img.width}")
Random image path: ./Data/train/dogs\dog.688.jpg Image class: dogs Image height: 166 Image width: 240
# ✅ Define transform first
from torchvision import transforms
transform = transforms.Compose([
transforms.Resize((224, 224)), # Resize images here!
transforms.ToTensor(),
transforms.Normalize(mean=[0.5]*3, std=[0.5]*3)
])
# ✅ Then apply to ImageFolder
from torchvision.datasets import ImageFolder
train_dataset = ImageFolder(root=train_dir, transform=transform)
# ✅ Load with DataLoader
from torch.utils.data import DataLoader
train_loader = DataLoader(train_dataset, batch_size=32, shuffle=True)
# Check a single batch to make sure it works
for images, labels in train_loader:
print(f"Batch image shape: {images.shape}") # Should be [32, 3, 224, 224]
print(f"Batch label shape: {labels.shape}") # Should be [32]
break
Batch image shape: torch.Size([32, 3, 224, 224]) Batch label shape: torch.Size([32])
CNN Binary Classifier¶
import torch
import torch.nn as nn
class ImageBinaryClassifier(nn.Module):
def __init__(self):
super(ImageBinaryClassifier, self).__init__()
# Input: 3 RGB channels (red, green, blue)
# Output: 16 channels
# Kernel: 3 x 3 matrix
# Stride = 1: the kernel moves 1 step
# Padding = 1: 1 pixel around the border
self.conv1 = nn.Conv2d(in_channels=3, out_channels=16, kernel_size=3, stride=1, padding=1)
# ReLU activation introduces non-linearity to help the model learn complex patterns
self.relu = nn.ReLU()
# Max pooling layer:
# using a 2x2 window and a stride of 2
self.pool = nn.MaxPool2d(kernel_size=2, stride=2)
# Flatten layer:
# Converts 3D feature maps (batch_size x channels x height x width) into 1D vectors
# Required before feeding into a fully connected (dense) layer
self.flatten = nn.Flatten()
# Fully connected (linear) layer:
# Input features: 16 channels × 112 × 112 pixels (after pooling)
# Output: 1 neuron, used for binary classification (output in range 0-1)
self.fc1 = nn.Linear(16 * 112 * 112, 1)
# Sigmoid activation:
self.sigmoid = nn.Sigmoid()
def forward(self, x):
# Apply 1st conv layer, followed by ReLU activation
x = self.relu(self.conv1(x))
# Apply max pooling to reduce spatial dimensions
x = self.pool(x)
# Flatten the output to prepare for the fully connected layer
x = self.flatten(x)
# Apply fully connected layer
x = self.fc1(x)
# Apply sigmoid to get a probability output between 0 and 1
x = self.sigmoid(x)
return x
# Load model
model = ImageBinaryClassifier()
#model.load_state_dict(torch.load("model.pth", map_location=torch.device('cpu')))
model.eval()
ImageBinaryClassifier( (conv1): Conv2d(3, 16, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (relu): ReLU() (pool): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False) (flatten): Flatten(start_dim=1, end_dim=-1) (fc1): Linear(in_features=200704, out_features=1, bias=True) (sigmoid): Sigmoid() )
import torch.optim as optim
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model = ImageBinaryClassifier().to(device)
# Binary classification — use BCELoss
criterion = nn.BCELoss()
# Optimizer
optimizer = optim.Adam(model.parameters(), lr=0.0001)
num_epochs = 5
for epoch in range(num_epochs):
model.train()
running_loss = 0.0
for images, labels in train_loader:
images = images.to(device)
labels = labels.float().unsqueeze(1).to(device) # shape: [batch, 1]
# Forward pass
outputs = model(images)
loss = criterion(outputs, labels)
# Backward pass and optimization
optimizer.zero_grad()
loss.backward()
optimizer.step()
running_loss += loss.item()
print(f"Epoch [{epoch+1}/{num_epochs}], Loss: {running_loss:.4f}")
Epoch [1/5], Loss: 45.0474 Epoch [2/5], Loss: 39.3734 Epoch [3/5], Loss: 36.7471 Epoch [4/5], Loss: 34.7636 Epoch [5/5], Loss: 32.4146
- Prediction on test set
torch.save(model.state_dict(), './models/binary_model.pth')
test_dir = os.path.join(base_dir, 'test')
#os.mkdir(test_dir)
test_dataset = ImageFolder(root=test_dir, transform=transform)
classes = test_dataset.classes
print(classes)
print(test_dataset.class_to_idx)
['cats', 'dogs'] {'cats': 0, 'dogs': 1}
test_loader = DataLoader(test_dataset, batch_size=32, shuffle=False)
# Check a single batch to make sure it works
for images, labels in test_loader:
print(f"Batch image shape: {images.shape}") # Should be [32, 3, 224, 224]
print(f"Batch label shape: {labels.shape}") # Should be [32]
break
Batch image shape: torch.Size([32, 3, 224, 224]) Batch label shape: torch.Size([32])
all_preds = []
all_labels = []
with torch.no_grad(): # Disable gradients for faster inference
for images, labels in test_loader:
images = images.to(device)
labels = labels.float().unsqueeze(1).to(device).to(device)
outputs = model(images) # Raw output from sigmoid
preds = (outputs > 0.5).int() # Convert to 0 (cat) or 1 (dog)
all_preds.extend(preds.cpu().numpy())
all_labels.extend(labels.cpu().numpy())
from sklearn.metrics import accuracy_score
accuracy = accuracy_score(all_labels, all_preds)
print(f"Test Accuracy: {accuracy:.2%}")
Test Accuracy: 63.20%
import matplotlib.pyplot as plt
model.eval()
class_names = train_dataset.classes # ['cat', 'dog']
with torch.no_grad():
images, labels = next(iter(test_loader))
outputs = model(images.to(device))
preds = (outputs > 0.5).int().cpu().numpy()
# Plot first 6 images with predictions
for i in range(5):
img = images[i].permute(1, 2, 0).numpy() * 0.5 + 0.5 # unnormalize
plt.imshow(img)
plt.title(f"True: {class_names[labels[i]]}, Pred: {class_names[preds[i][0]]}")
plt.axis('off')
plt.show()
Use a Pre-trained Model¶
The current CNN is very basic. Instead, we can use a pretrained model to boost the performance:
🧠 1. Choose a Pre-trained Model
Pick a model that’s already trained on a large dataset (e.g., ImageNet). Popular choices include:
- ResNet18 / ResNet50
- VGG16
- EfficientNet
- MobileNet
These models already know how to extract useful image features (like edges, textures, shapes).
🧊 2. Freeze the Pre-trained Layers
To avoid retraining everything from scratch, we freeze the early layers. These layers contain general-purpose filters (e.g., edge detectors), which are useful for almost any image task.
Freezing means:
- Their weights won’t change.
- It speeds up training and avoids overfitting.
🧩 3. Replace the Final Layer (Classifier)
Pre-trained models are trained for 1000 classes. But your task might be:
- Binary classification (e.g., cat vs dog)
- Multiclass (e.g., apple, banana, orange)
So we remove the original final layer and add a new one that fits your number of output classes.
🧪 4. Train Only the New Layer
You then train just the final layer:
- It learns how to map pre-learned features to your new task.
- This requires much less data and compute than training the whole model.
The rest of the model still extracts features from the images as before.
💡 5. (Optional) Fine-Tune Later
Once the new layer is trained, you can optionally unfreeze some of the deeper layers and fine-tune them with a low learning rate. This gives even better performance, especially if your dataset is large or different from ImageNet.
💾 6. Save and Load the Model
After training, you can save your model locally so you can reuse it later without retraining.
Later, you load the model to:
- Make predictions on new data.
- Resume training if needed.
from torchvision import models
model = models.resnet18(pretrained=True)
# Freeze All Layers (except fc)
for param in model.parameters():
param.requires_grad = False # Freeze feature extractor
# Replace final layer for binary classification
model.fc = nn.Sequential(
nn.Linear(model.fc.in_features, 1),
nn.Sigmoid()
)
C:\Users\mrezv\anaconda3\envs\faiss-env\lib\site-packages\torchvision\models\_utils.py:208: UserWarning: The parameter 'pretrained' is deprecated since 0.13 and may be removed in the future, please use 'weights' instead. warnings.warn( C:\Users\mrezv\anaconda3\envs\faiss-env\lib\site-packages\torchvision\models\_utils.py:223: UserWarning: Arguments other than a weight enum or `None` for 'weights' are deprecated since 0.13 and may be removed in the future. The current behavior is equivalent to passing `weights=ResNet18_Weights.IMAGENET1K_V1`. You can also use `weights=ResNet18_Weights.DEFAULT` to get the most up-to-date weights. warnings.warn(msg)
# Train Only model.fc
optimizer = torch.optim.Adam(model.fc.parameters(), lr=1e-4)
loss_fn = nn.BCELoss() # Use BCE since we have sigmoid in final layer
# Move Model to Device
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model.to(device)
ResNet( (conv1): Conv2d(3, 64, kernel_size=(7, 7), stride=(2, 2), padding=(3, 3), bias=False) (bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (maxpool): MaxPool2d(kernel_size=3, stride=2, padding=1, dilation=1, ceil_mode=False) (layer1): Sequential( (0): BasicBlock( (conv1): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) (1): BasicBlock( (conv1): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) ) (layer2): Sequential( (0): BasicBlock( (conv1): Conv2d(64, 128, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False) (bn1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (downsample): Sequential( (0): Conv2d(64, 128, kernel_size=(1, 1), stride=(2, 2), bias=False) (1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) ) (1): BasicBlock( (conv1): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) ) (layer3): Sequential( (0): BasicBlock( (conv1): Conv2d(128, 256, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False) (bn1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (downsample): Sequential( (0): Conv2d(128, 256, kernel_size=(1, 1), stride=(2, 2), bias=False) (1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) ) (1): BasicBlock( (conv1): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) ) (layer4): Sequential( (0): BasicBlock( (conv1): Conv2d(256, 512, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False) (bn1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (downsample): Sequential( (0): Conv2d(256, 512, kernel_size=(1, 1), stride=(2, 2), bias=False) (1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) ) (1): BasicBlock( (conv1): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) ) (avgpool): AdaptiveAvgPool2d(output_size=(1, 1)) (fc): Sequential( (0): Linear(in_features=512, out_features=1, bias=True) (1): Sigmoid() ) )
for epoch in range(num_epochs):
model.train()
running_loss = 0.0
for images, labels in train_loader:
images = images.to(device)
labels = labels.float().unsqueeze(1).to(device) # [batch_size, 1]
outputs = model(images)
loss = loss_fn(outputs, labels)
optimizer.zero_grad()
loss.backward()
optimizer.step()
running_loss += loss.item()
print(f"Epoch [{epoch+1}/{num_epochs}], Loss: {running_loss:.4f}")
Epoch [1/5], Loss: 42.4384 Epoch [2/5], Loss: 34.8734 Epoch [3/5], Loss: 29.4266 Epoch [4/5], Loss: 25.1113 Epoch [5/5], Loss: 22.2969
all_preds = []
all_labels = []
with torch.no_grad(): # Disable gradients for faster inference
for images, labels in test_loader:
images = images.to(device)
labels = labels.float().unsqueeze(1).to(device).to(device)
outputs = model(images) # Raw output from sigmoid
preds = (outputs > 0.5).int() # Convert to 0 (cat) or 1 (dog)
all_preds.extend(preds.cpu().numpy())
all_labels.extend(labels.cpu().numpy())
from sklearn.metrics import accuracy_score
accuracy = accuracy_score(all_labels, all_preds)
print(f"Test Accuracy: {accuracy:.2%}")
Test Accuracy: 52.20%
all_labels[:20]
[array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32), array([0.], dtype=float32)]
import matplotlib.pyplot as plt
model.eval()
class_names = train_dataset.classes # ['cat', 'dog']
with torch.no_grad():
images, labels = next(iter(test_loader))
outputs = model(images.to(device))
preds = (outputs > 0.5).int().cpu().numpy()
# Plot first 6 images with predictions
for i in range(5):
img = images[i].permute(1, 2, 0).numpy() * 0.5 + 0.5 # unnormalize
plt.imshow(img)
plt.title(f"True: {class_names[labels[i]]}, Pred: {class_names[preds[i][0]]}")
plt.axis('off')
plt.show()
Object Recognition¶
Image retrieved from https://www.aimtechnologies.co/image-recognition-technology-the-power-of-visual-intelligence/
- Identifies objects within images
- Provides:
- The location of each object (via bounding boxes)
- The class label for each object (e.g., cat, car, person)
- Common applications include:
- Surveillance and security
- Medical imaging and diagnosis
- Traffic monitoring and management
- Sports analytics and performance tracking
Bounding Box Representation
- A rectangular box used to indicate an object’s position within an image
- Describes the object’s spatial location (usually as coordinates)
- Used in both:
- Training data annotations (manually labeled boxes)
- Model outputs (predicted boxes)
- The ground truth bounding box represents the accurate, human-labeled location of the object
- A rectangle that defines an object’s location within an image
- The ground truth bounding box refers to the accurate, labeled position of the object
- Bounding boxes are defined by their corner coordinates:
- Top-left corner: (x₁, y₁)
- Bottom-right corner: (x₂, y₂)
- So the format is:
Bounding Box = (x₁, y₁, x₂, y₂)
where:x₁
= minimum x (left edge)y₁
= minimum y (top edge)x₂
= maximum x (right edge)y₂
= maximum y (bottom edge)
Converting Pixels to Tensors¶
Object detection models work with tensors, not raw image pixels. To convert images into tensors, we use transforms:
- 1️⃣
transforms.ToTensor()
- Converts a PIL Image or NumPy array to a normalized FloatTensor
- Scales pixel values from [0, 255] → [0.0, 1.0]
- Output shape: [C, H, W] (channels, height, width)
- Commonly used in training pipelines
img = Image.open(random_image_path)
import torchvision.transforms as transforms
transform = transforms.Compose([transforms.Resize(224), transforms.ToTensor()])
image_tensor = transform(img)
print(image_tensor.shape)
image_tensor
torch.Size([3, 224, 323])
tensor([[[0.2510, 0.2510, 0.2510, ..., 0.3176, 0.3176, 0.3216], [0.2471, 0.2471, 0.2471, ..., 0.3176, 0.3176, 0.3176], [0.2392, 0.2392, 0.2392, ..., 0.3176, 0.3176, 0.3176], ..., [0.4941, 0.5216, 0.5451, ..., 0.5882, 0.5804, 0.5765], [0.4784, 0.5059, 0.5451, ..., 0.6039, 0.5882, 0.5765], [0.4824, 0.5098, 0.5569, ..., 0.6275, 0.6000, 0.5804]], [[0.3412, 0.3412, 0.3412, ..., 0.4353, 0.4353, 0.4392], [0.3373, 0.3373, 0.3373, ..., 0.4353, 0.4353, 0.4353], [0.3294, 0.3294, 0.3294, ..., 0.4353, 0.4353, 0.4353], ..., [0.4784, 0.5059, 0.5294, ..., 0.6000, 0.5922, 0.5882], [0.4627, 0.4902, 0.5294, ..., 0.6157, 0.6000, 0.5882], [0.4667, 0.4941, 0.5412, ..., 0.6392, 0.6118, 0.5922]], [[0.3961, 0.3961, 0.3961, ..., 0.5294, 0.5294, 0.5333], [0.3922, 0.3922, 0.3922, ..., 0.5294, 0.5294, 0.5294], [0.3843, 0.3843, 0.3843, ..., 0.5294, 0.5294, 0.5294], ..., [0.4667, 0.4941, 0.5176, ..., 0.6196, 0.6118, 0.6078], [0.4510, 0.4784, 0.5176, ..., 0.6353, 0.6196, 0.6078], [0.4549, 0.4824, 0.5294, ..., 0.6588, 0.6314, 0.6118]]])
- 2️⃣
transforms.PILToTensor()
- Converts a PIL Image to a raw integer tensor (without scaling)
- Pixel values remain in [0, 255]
- Output shape: [C, H, W]
- Useful when you want to keep original pixel intensity (e.g., for visualization or certain custom transformations)
import torchvision.transforms as transforms
transform = transforms.Compose([transforms.Resize(224), transforms.PILToTensor()])
image_tensor = transform(img)
print(image_tensor.shape)
image_tensor
torch.Size([3, 224, 323])
tensor([[[ 64, 64, 64, ..., 81, 81, 82], [ 63, 63, 63, ..., 81, 81, 81], [ 61, 61, 61, ..., 81, 81, 81], ..., [126, 133, 139, ..., 150, 148, 147], [122, 129, 139, ..., 154, 150, 147], [123, 130, 142, ..., 160, 153, 148]], [[ 87, 87, 87, ..., 111, 111, 112], [ 86, 86, 86, ..., 111, 111, 111], [ 84, 84, 84, ..., 111, 111, 111], ..., [122, 129, 135, ..., 153, 151, 150], [118, 125, 135, ..., 157, 153, 150], [119, 126, 138, ..., 163, 156, 151]], [[101, 101, 101, ..., 135, 135, 136], [100, 100, 100, ..., 135, 135, 135], [ 98, 98, 98, ..., 135, 135, 135], ..., [119, 126, 132, ..., 158, 156, 155], [115, 122, 132, ..., 162, 158, 155], [116, 123, 135, ..., 168, 161, 156]]], dtype=torch.uint8)
Drawing the bounding box¶
To visualize object locations, you can draw bounding boxes using draw_bounding_boxes
from torchvision.utils
.
🧩 Steps to Draw Bounding Boxes:
Import the utility
- Use
draw_bounding_boxes
fromtorchvision.utils
- Use
Collect bounding box coordinates
- Store them as a tensor with shape
[num_boxes, 4]
- Each box in format:
(x1, y1, x2, y2)
- Store them as a tensor with shape
Unsqueeze if needed
- If the image tensor is 3D (
[C, H, W]
), add a batch dimension using.unsqueeze(0)
to make it 4D - Example shape:
[1, C, H, W]
- If the image tensor is 3D (
Convert the image (if needed)
- Make sure the image is a
torch.Tensor
in [0–255] range and of typeuint8
- If you used
ToTensor()
(scales to [0,1]), multiply by 255 and convert touint8
- Make sure the image is a
Draw and visualize
- Use
draw_bounding_boxes()
to overlay boxes on the image - Plot using
matplotlib
orPIL.Image
- Use
from torchvision.utils import draw_bounding_boxes
bbox = torch.tensor([50, 15, 310, 210])
bbox = bbox.unsqueeze(0)
bbox_image = draw_bounding_boxes(image_tensor, bbox, width=3, colors="red")
transform = transforms.Compose([transforms.ToPILImage()])
pil_image = transform(bbox_image)
import matplotlib.pyplot as plt
plt.imshow(pil_image)
<matplotlib.image.AxesImage at 0x27fc8993b80>
Two-Stage Object Detection¶
Image retrieved from https://namrata-thakur893.medium.com/a-detailed-introduction-to-two-stage-object-detectors-d4ba0c06b14e
Two-stage detectors work in two main steps:
- Region proposal network (RPN) (Regression): Identify potential areas in the image where objects might exist.
- Classification + Bounding Box Refinement: Analyze each proposed region to classify the object and refine the bounding box.
This approach focuses on accuracy, often at the cost of speed.
Common Two-Stage Models are:
R-CNN (Region-based Convolutional Neural Network)
- First model to use CNNs for object detection
- Steps:
- Uses an external algorithm (like Selective Search) to generate ~2,000 region proposals
- Extracts features from each region using a CNN
- Classifies each region and adjusts bounding boxes
- Drawback: Very slow — processes each region separately
Fast R-CNN
- Improved version of R-CNN
- Processes the entire image just once with a CNN
- Region proposals are applied to the feature map (not raw image)
- Much faster because it avoids repeating CNN passes for every region
- Still relies on external region proposal algorithm (e.g., Selective Search)
Faster R-CNN
- Most efficient and widely used two-stage detector
- Introduces a Region Proposal Network (RPN):
- Learns to propose regions directly within the model
- Fully integrated with the detection pipeline
- Achieves high accuracy and speed
- Forms the backbone for many modern detection systems
Model | Region Proposals | Speed | Accuracy | Notes |
---|---|---|---|---|
R-CNN | External (Selective Search) | Slow | High | First CNN-based detector |
Fast R-CNN | External (Selective Search) | Faster | High | Single CNN pass per image |
Faster R-CNN | Learned (RPN) | Much faster | Very high | Fully end-to-end model |
The backbone Backbone in R-CNN (and other detection models) is the convolutional neural network (CNN) used to extract features from the input image.
It processes the raw image and produces a feature map that represents textures, edges, shapes, and patterns in the image.
These feature maps are then used for region proposal and object classification.
In R-CNN specifically: the backbone is a pretrained CNN (often trained on ImageNet).
Common backbones include:
- AlexNet (used in the original R-CNN paper)
- VGG16
- ResNet-50 or ResNet-101 (used in modern variants)
Example Flow in R-CNN
- Input image → Region proposals generated by Selective Search
- Each region (cropped) → Passed through the CNN backbone (e.g., AlexNet)
- Features → Passed to a classifier (e.g., SVM) and bounding box regressor

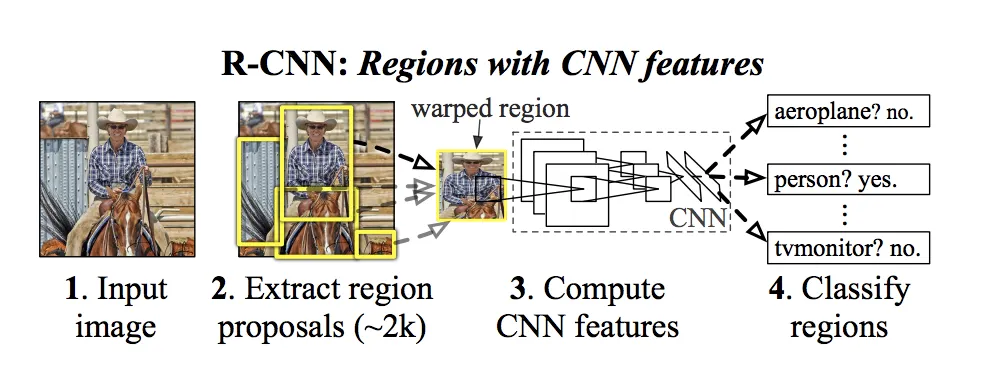

Image retrieved from https://miro.medium.com/v2/resize:fit:1100/format:webp/0*2DfHy1gJrjh5yj7F
Image retrieved from https://viso.ai/deep-learning/faster-r-cnn-2/
Implement R-CNN¶
# R-CNN: backbone with PyTorch
import torch.nn as nn
from torchvision.models import vgg16, VGG16_Weights
vgg = vgg16(weights=VGG16_Weights.DEFAULT)
backbone = nn.Sequential(*list (vgg.features.children()))
nn.Sequential(*list())
: all sub-layersare placed into a sequential block as a list*
: unpacks the elements from the list.features
: only convolutional layers
.children()
: all layers from block
- Extract backbone's output size
input_dimension = nn.Sequential(*list(
backbone.classifier.children())
)[0].in_features
- Box regressor layer
- Sits on top of the backbone
- 4 outputs for the 4 box coordinates
classifier = nn.Sequential(
nn.Linear(input_dimension, 512),
nn.ReLU(),
nn.Linear(512, num_classes),
)
- Create a new classifier
classifier = nn.Sequential(
nn.Linear(input_dimension, 512),
nn.ReLU(),
nn.Linear(512, num_classes),
)
Here is object detection class by putting together all parts:
class ObjectDetectorCNN(nn.Module):
def __init__(self):
super(ObjectDetectorCNN, self).__init__()
vgg = vgg16(weights=VGG16_Weights.DEFAULT)
self.backbone = nn.Sequential(*list(vgg.features.children()))
input_features = nn.Sequential(*list(vgg.classifier.children()))[0].in_features
self.classifier = nn.Sequential(
nn.Linear(input_features, 512),
nn.ReLU(),
nn.Linear(512, 2),
)
self.box_regressor = nn.Sequential(
nn.Linear(input_features, 32),
nn.ReLU(),
nn.Linear(32, 4),
)
def forward(self, x):
features = self.backbone(x)
bboxes = self.regressor(features)
classes = self.classifier(features)
return bboxes, classes
By putting together all parts, this class defines a Convolutional Neural Network (CNN) model for object detection, built on top of a pre-trained VGG16 model from torchvision. It outputs:
- Class predictions (e.g., object or background)
- Bounding box predictions (coordinates of detected object)
import torch.nn as nn
from torchvision.models import vgg16, VGG16_Weights
class ObjectDetectorCNN(nn.Module):
def __init__(self):
super(ObjectDetectorCNN, self).__init__()
# Load a pre-trained VGG16 model with default ImageNet weights
vgg = vgg16(weights=VGG16_Weights.DEFAULT)
# Use the convolutional feature extractor part of VGG16 as the backbone
self.backbone = nn.Sequential(*list(vgg.features.children()))
# Get the number of input features for the first fully connected layer in VGG16
input_features = nn.Sequential(*list(vgg.classifier.children()))[0].in_features
# Define a new classifier head for binary classification (2 classes)
self.classifier = nn.Sequential(
nn.Linear(input_features, 512),
nn.ReLU(),
nn.Linear(512, 2), # Output: class scores (e.g., object vs. background)
)
# Define a bounding box regressor head to predict [x1, y1, x2, y2]
self.box_regressor = nn.Sequential(
nn.Linear(input_features, 32),
nn.ReLU(),
nn.Linear(32, 4), # Output: bounding box coordinates
)
def forward(self, x):
# Extract features from the input image using the CNN backbone
features = self.backbone(x)
# 'features' will be a feature map (4D tensor)
features = torch.flatten(features, 1)
# Apply the classifier and regressor heads
bboxes = self.box_regressor(features)
classes = self.classifier(features)
return bboxes, classes # Return both bounding boxes and class scores
- Backbone (
self.backbone
): VGG16's convolutional layers used to extract features from the image. - Classifier (
self.classifier
): A small feedforward network that predicts the class of the object (binary in this case). - Box Regressor (
self.box_regressor
): A network that predicts the bounding box coordinates for the detected object.
Dogs vs Cats (Bounding Boxes Added)¶
Modified version of Kaggle's classic "Dogs vs Cats" dataset with bounding boxes. The data is retrieved from Kaggle.
import os
import xml.etree.ElementTree as ET
from PIL import Image
import torch
from torch.utils.data import Dataset
import torchvision.transforms as T
class DogsCatsDataset(Dataset):
def __init__(self, image_dir, annot_dir, transform=None, target_size=(224, 224)):
self.image_dir = image_dir
self.annot_dir = annot_dir
self.transform = transform
self.image_files = [f for f in os.listdir(image_dir) if f.endswith(".png")]
self.label_map = {"cat": 0, "dog": 1}
self.target_size = target_size # for resizing boxes
def __len__(self):
return len(self.image_files)
def __getitem__(self, idx):
img_filename = self.image_files[idx]
img_path = os.path.join(self.image_dir, img_filename)
annot_path = os.path.join(self.annot_dir, img_filename.replace(".png", ".xml"))
image = Image.open(img_path).convert("RGB")
original_width, original_height = image.size
# Parse XML
tree = ET.parse(annot_path)
root = tree.getroot()
label_name = root.find("object").find("name").text
label = self.label_map[label_name]
bbox_xml = root.find("object").find("bndbox")
xmin = float(bbox_xml.find("xmin").text)
ymin = float(bbox_xml.find("ymin").text)
xmax = float(bbox_xml.find("xmax").text)
ymax = float(bbox_xml.find("ymax").text)
# Scale bbox to match resized image size
target_w, target_h = self.target_size
x_scale = target_w / original_width
y_scale = target_h / original_height
xmin_scaled = xmin * x_scale
xmax_scaled = xmax * x_scale
ymin_scaled = ymin * y_scale
ymax_scaled = ymax * y_scale
bbox = torch.tensor([xmin_scaled, ymin_scaled, xmax_scaled, ymax_scaled], dtype=torch.float32)
# Resize image
if self.transform:
image = self.transform(image)
return image, bbox, torch.tensor(label)
from torch.utils.data import random_split
transform = T.Compose([
T.Resize((224, 224)),
T.ToTensor(),
])
dataset = DogsCatsDataset(
image_dir="./Data/dog-and-cat-detection/images",
annot_dir="./Data/dog-and-cat-detection/annotations",
transform=transform
)
# Split sizes (e.g., 80% train / 20% test)
train_size = int(0.8 * len(dataset))
test_size = len(dataset) - train_size
# Random split
train_dataset, test_dataset = random_split(dataset, [train_size, test_size])
from torch.utils.data import DataLoader
train_loader = DataLoader(train_dataset, batch_size=32, shuffle=True)
test_loader = DataLoader(test_dataset, batch_size=32, shuffle=False)
Look at the Images¶
for images, bboxes, labels in train_loader:
print(f"Batch image shape: {images.shape}") # Should be [32, 3, 224, 224]
print(f"Batch label shape: {bboxes.shape}") # Should be [32, 4]
print(f"Batch label shape: {labels.shape}") # Should be [32]
break
Batch image shape: torch.Size([32, 3, 224, 224]) Batch label shape: torch.Size([32, 4]) Batch label shape: torch.Size([32])
import torchvision.transforms.functional as F
# Look at the data
def draw_bbox(image, bbox, label, color='red'):
image = F.to_pil_image(image.cpu())
draw = ImageDraw.Draw(image)
draw.rectangle(bbox.tolist(), outline=color, width=3)
draw.text((bbox[0].item(), bbox[1].item()), label, fill=color)
return image
# Display a few predictions
from PIL import ImageDraw
classes = {0: "cat", 1: "dog"}
sample_images = images[:3]
sample_bboxes = bboxes[:3]
sample_labels = labels[:3]
for i in range(3):
img = draw_bbox(sample_images[i], sample_bboxes[i], classes[sample_labels[i].item()])
plt.imshow(img)
plt.axis("off")
plt.title(f"Actual: {classes[sample_labels[i].item()]}")
plt.show()
Prediction¶
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model = ObjectDetectorCNN().to(device)
# Define loss functions
criterion_cls = nn.CrossEntropyLoss() # for classification
criterion_bbox = nn.MSELoss() # for bounding box regression
optimizer = optim.Adam(model.parameters(), lr=1e-4)
from tqdm import tqdm
num_epochs = 4
for epoch in range(num_epochs):
model.train()
total_loss = 0.0
for images, bboxes, labels in tqdm(train_loader, desc=f"Epoch {epoch+1}/{num_epochs}"):
images = images.to(device)
bboxes = bboxes.to(device)
labels = labels.to(device)
optimizer.zero_grad()
pred_bboxes, class_logits = model(images)
# Compute losses
loss_cls = criterion_cls(class_logits, labels)
loss_bbox = criterion_bbox(pred_bboxes, bboxes)
loss = loss_cls + loss_bbox
loss.backward()
optimizer.step()
total_loss += loss.item()
avg_loss = total_loss / len(train_loader)
print(f"Epoch [{epoch+1}/{num_epochs}], Loss: {avg_loss:.4f}")
Epoch 1/4: 100%|███████████████████████████████████████████████████████████████████████| 25/25 [09:32<00:00, 22.89s/it]
Epoch [1/4], Loss: 4456.7773
Epoch 2/4: 100%|███████████████████████████████████████████████████████████████████████| 25/25 [09:33<00:00, 22.94s/it]
Epoch [2/4], Loss: 842.4922
Epoch 3/4: 100%|███████████████████████████████████████████████████████████████████████| 25/25 [09:34<00:00, 23.00s/it]
Epoch [3/4], Loss: 402.2148
Epoch 4/4: 100%|███████████████████████████████████████████████████████████████████████| 25/25 [09:35<00:00, 23.02s/it]
Epoch [4/4], Loss: 274.2585
Look at Predictions¶
import matplotlib.pyplot as plt
model.eval()
test_loss = 0.0
all_preds = []
all_pred_bboxes = []
all_targets_bboxes = []
all_targets = []
with torch.no_grad():
for images, bboxes, labels in test_loader:
images = images.to(device)
bboxes = bboxes.to(device)
labels = labels.to(device)
# Forward pass
pred_bboxes, class_logits = model(images)
all_pred_bboxes.extend(pred_bboxes.cpu().numpy())
# Compute losses
loss_cls = criterion_cls(class_logits, labels)
loss_bbox = criterion_bbox(pred_bboxes, bboxes)
loss = loss_cls + loss_bbox
test_loss += loss.item()
# Store predictions and targets (optional, for metrics or visualization)
preds = torch.argmax(class_logits, dim=1)
all_preds.extend(preds.cpu().numpy())
all_targets_bboxes.extend(bboxes.cpu().numpy())
all_targets.extend(labels.cpu().numpy())
# Print average test loss
avg_test_loss = test_loss / len(test_loader)
print(f"\n✅ Test Loss: {avg_test_loss:.4f}")
✅ Test Loss: 371.3380
font = {'size' : 6}
plt.rc('font', **font)
n_fig = 5
sample_images = images[:n_fig]
pred_bboxes = pred_bboxes[:n_fig]
pred_labels = torch.argmax(class_logits, dim=1)[:n_fig]
#
act_bboxes = bboxes[:n_fig]
act_labels = labels[:n_fig]
for i in range(n_fig):
plt.figure(figsize=(10, 5))
ax1=plt.subplot(1,2,1)
img = draw_bbox(sample_images[i], act_bboxes[i], classes[act_labels[i].item()])
plt.imshow(img)
plt.axis("off")
plt.title(f"Actual: {classes[act_labels[i].item()]}", fontsize=16)
ax1=plt.subplot(1,2,2)
img = draw_bbox(sample_images[i], pred_bboxes[i], classes[pred_labels[i].item()])
plt.imshow(img)
plt.axis("off")
plt.title(f"Predicted: {classes[pred_labels[i].item()]}", fontsize=16)
plt.show()
Implement Faster R-CNN¶
from torchvision.models.detection import fasterrcnn_resnet50_fpn
# Load a pre-trained Faster R-CNN model with ResNet50-FPN backbone
model_fast_rcnn = fasterrcnn_resnet50_fpn(pretrained=True)
# Define number of classes and classifier input sise
num_classes = 2
in_features = model_fast_rcnn.roi_heads.box_predictor.cls_score.in_features
from torchvision.models.detection.faster_rcnn import FastRCNNPredictor
# Replace model_fast_rcnn's classifier with a one with the desired number of classes
model_fast_rcnn.roi_heads.box_predictor = FastRCNNPredictor(in_features, num_classes)
C:\Users\mrezv\anaconda3\envs\faiss-env\lib\site-packages\torchvision\models\_utils.py:208: UserWarning: The parameter 'pretrained' is deprecated since 0.13 and may be removed in the future, please use 'weights' instead. warnings.warn( C:\Users\mrezv\anaconda3\envs\faiss-env\lib\site-packages\torchvision\models\_utils.py:223: UserWarning: Arguments other than a weight enum or `None` for 'weights' are deprecated since 0.13 and may be removed in the future. The current behavior is equivalent to passing `weights=FasterRCNN_ResNet50_FPN_Weights.COCO_V1`. You can also use `weights=FasterRCNN_ResNet50_FPN_Weights.DEFAULT` to get the most up-to-date weights. warnings.warn(msg)
class FasterRcnnDogsCatsDataset(torch.utils.data.Dataset):
def __init__(self, image_dir, annot_dir, transform=None, target_size=(224, 224)):
self.image_dir = image_dir
self.annot_dir = annot_dir
self.transform = transform
self.image_files = [f for f in os.listdir(image_dir) if f.endswith(".png")]
self.label_map = {"cat": 0, "dog": 1} # 0 is background
self.target_size = target_size # for resizing boxes
def __len__(self):
return len(self.image_files)
def __getitem__(self, idx):
img_filename = self.image_files[idx]
img_path = os.path.join(self.image_dir, img_filename)
annot_path = os.path.join(self.annot_dir, img_filename.replace(".png", ".xml"))
image = Image.open(img_path).convert("RGB")
original_width, original_height = image.size
# Parse XML
tree = ET.parse(annot_path)
root = tree.getroot()
obj = root.find("object")
label = self.label_map[obj.find("name").text]
bbox = obj.find("bndbox")
xmin = float(bbox.find("xmin").text)
ymin = float(bbox.find("ymin").text)
xmax = float(bbox.find("xmax").text)
ymax = float(bbox.find("ymax").text)
# Scale bbox to match resized image size
target_w, target_h = self.target_size
x_scale = target_w / original_width
y_scale = target_h / original_height
xmin_scaled = xmin * x_scale
xmax_scaled = xmax * x_scale
ymin_scaled = ymin * y_scale
ymax_scaled = ymax * y_scale
boxes = torch.tensor([[xmin_scaled, ymin_scaled, xmax_scaled, ymax_scaled]], dtype=torch.float32)
labels = torch.tensor([label], dtype=torch.int64)
target = {"boxes": boxes, "labels": labels}
if self.transform:
image = self.transform(image)
return image, target
from torchvision.transforms import ToTensor
transform = transforms.Compose([
transforms.Resize((224, 224)),
transforms.ToTensor()
])
image_dir="./Data/dog-and-cat-detection/images"
annot_dir="./Data/dog-and-cat-detection/annotations"
dataset = FasterRcnnDogsCatsDataset(image_dir, annot_dir, transform=transform, target_size=(224, 224))
dataloader = torch.utils.data.DataLoader(dataset, batch_size=5, shuffle=True, collate_fn=lambda x: tuple(zip(*x)))
# Split sizes (e.g., 80% train / 20% test)
train_size = int(0.8 * len(dataset))
test_size = len(dataset) - train_size
# Random split
train_dataset, test_dataset = random_split(dataset, [train_size, test_size])
from torch.utils.data import DataLoader
train_loader = torch.utils.data.DataLoader(train_dataset, batch_size=5, shuffle=True, collate_fn=lambda x: tuple(zip(*x)))
test_dataset = torch.utils.data.DataLoader(test_dataset, batch_size=5, shuffle=True, collate_fn=lambda x: tuple(zip(*x)))
for images, targets in train_loader:
images = list(img.to(device) for img in images)
targets = [{k: v.to(device) for k, v in t.items()} for t in targets]
break
targets
[{'boxes': tensor([[128.1280, 63.9039, 169.7920, 135.2072]]), 'labels': tensor([1])}, {'boxes': tensor([[34.4960, 0.5973, 97.2160, 94.9760]]), 'labels': tensor([1])}, {'boxes': tensor([[ 61.3760, 54.5340, 127.2320, 142.4921]]), 'labels': tensor([0])}, {'boxes': tensor([[ 87.2308, 17.9200, 208.3846, 136.6400]]), 'labels': tensor([1])}, {'boxes': tensor([[ 29.6092, 57.6000, 96.5517, 139.5200]]), 'labels': tensor([0])}]
%time
classes = {0: "cat", 1: "dog"}
for i in range(3):
sample_images = images[i]
sample_bboxes = targets[i]['boxes']
sample_labels = targets[i]['labels']
img = draw_bbox(sample_images, sample_bboxes[0], classes[sample_labels.item()])
plt.imshow(img)
plt.axis("off")
plt.title(f"Actual: {classes[sample_labels.item()]}")
plt.show()
CPU times: total: 0 ns Wall time: 0 ns
Prediction¶
%time
model_fast_rcnn.to(device)
model_fast_rcnn.train()
optimizer = torch.optim.Adam(model_fast_rcnn.parameters(), lr=1e-4)
num_epochs = 2
for epoch in range(num_epochs):
for images, targets in train_loader:
images = list(img.to(device) for img in images)
targets = [{k: v.to(device) for k, v in t.items()} for t in targets]
loss_dict = model_fast_rcnn(images, targets)
losses = sum(loss for loss in loss_dict.values())
optimizer.zero_grad()
losses.backward()
optimizer.step()
print(f"Epoch {epoch+1} - Loss: {losses.item():.4f}")
CPU times: total: 0 ns Wall time: 0 ns Epoch 1 - Loss: 0.1005 Epoch 2 - Loss: 0.0754
model_fast_rcnn.eval() # set model to eval mode
all_preds = []
all_actual = []
with torch.no_grad():
for images, bboxes in test_dataset:
images = [img.to(device) for img in images]
# Run inference
outputs = model_fast_rcnn(images)
# Move outputs to CPU and store
for i in range(len(images)):
pred_boxes = outputs[i]['boxes'].cpu()
pred_labels = outputs[i]['labels'].cpu()
pred_scores = outputs[i]['scores'].cpu()
all_preds.append({
'boxes': pred_boxes,
'labels': pred_labels,
'scores': pred_scores,
'image_id': i # Optional: track which image
})
all_actual.append({
'image': images[i],
'bboxes': bboxes[i]
})
pred_scores
tensor([0.0825, 0.0727])
Look at Prediction¶
# Look at the data
def draw_multiple_bbox(image, bbox, label, color='red', width=1, pred_scores=None):
image = F.to_pil_image(image.cpu())
draw = ImageDraw.Draw(image)
if len(bbox)>=1:
for ir in range(len(bbox)):
draw.rectangle(bbox[ir].tolist(), outline=color, width=1)
if pred_scores!=None:
prd = int(np.round(pred_scores[ir],2)*100)
label = f'{label}, Score={prd}%'
else:
label = f'{label}'
draw.text((bbox[ir][0].item(), bbox[ir][1].item()), label, fill=color)
return image
font = {'size' : 6}
plt.rc('font', **font)
n_fig = 10
for i in range(n_fig):
# Sample input
sample_images = all_actual[i]['image']
act_bboxes = all_actual[i]['bboxes']['boxes']
act_label = all_actual[i]['bboxes']['labels']
#
prediction = all_preds[i]
# Extract data
pred_boxes = prediction['boxes']
pred_labels = prediction['labels']
pred_scores = prediction['scores']
# Apply a confidence threshold
threshold = 0.15
keep = pred_scores > threshold
pred_boxes = pred_boxes[keep]
pred_labels = [classes[l.item()] for l in pred_labels[keep]]
plt.figure(figsize=(10, 5))
ax1=plt.subplot(1,2,1)
img = draw_bbox(sample_images, act_bboxes[0], classes[act_label.item()])
plt.imshow(img)
plt.axis("off")
plt.title(f"Actual: {classes[act_label.item()]}", fontsize=16)
ax1=plt.subplot(1,2,2)
if len(pred_labels)>=1:
img = draw_multiple_bbox(sample_images, pred_boxes, pred_labels[0], pred_scores=None)
else:
img = draw_multiple_bbox(sample_images, pred_boxes, None, pred_scores=None)
plt.imshow(img)
plt.axis("off")
if len(pred_labels)>=1: plt.title(f"Predicted: {pred_labels[0]}", fontsize=16)
plt.show()
Intersection over Union (IoU)¶
Intersection over Union (IoU) is a standard evaluation metric used in object detection tasks to measure how well the predicted bounding box matches the ground truth bounding box.
Here’s what each term means:
- Object of interest: The item in the image we want to detect (e.g., a dog).
- Ground truth box: The accurately labeled box that perfectly surrounds the object of interest (usually drawn by a human).
- Predicted box: The box output by the detection model.
IoU is calculated as:
$IoU = \frac{\text{Area of Overlap (Intersection)}}{\text{Area of Union}}$
- Area of Intersection: The area where the predicted box and the ground truth box overlap.
- Area of Union: The total area covered by both boxes combined (without double-counting the overlap).
Interpretation:
- IoU = 0: No overlap between the predicted and ground truth boxes.
- IoU = 1: Perfect overlap — the predicted box exactly matches the ground truth.
- IoU > 0.5: Generally considered a "good" prediction (threshold can vary based on task).
Figure below a Diagrammatic representation of the formula to calculate IOU:
- Small Example
# Two sets of boxes (x1, y1, x2, y2)
bbox_1 = [63, 63, 162, 162]
bbox_2 = [71, 71, 178, 178]
bbox_1 = torch.tensor(bbox_1).unsqueeze(0)
bbox_2 = torch.tensor(bbox_2).unsqueeze(0)
from torchvision.ops import box_iou
iou = box_iou(bbox_1, bbox_2)
print(iou)
tensor([[0.6385]])
model_fast_rcnn.eval() # set model to eval mode
with torch.no_grad():
for images, bboxes in test_dataset:
images = [img.to(device) for img in images]
# Run inference
outputs = model_fast_rcnn(images)
break
print(outputs)
[{'boxes': tensor([[ 59.1766, 35.7878, 160.2520, 102.8107], [ 48.4511, 18.7178, 175.4347, 129.9121], [ 29.1291, 29.2868, 156.6243, 188.5912]]), 'labels': tensor([1, 1, 1]), 'scores': tensor([0.9580, 0.4953, 0.0535])}, {'boxes': tensor([[ 65.2527, 25.3158, 167.1676, 100.0974], [126.5162, 24.3283, 165.3551, 59.8299], [141.5926, 67.2581, 208.0837, 138.8255], [ 50.2338, 16.2549, 191.9981, 135.2037], [ 94.6246, 19.3349, 147.2737, 104.8754], [114.5969, 24.8429, 169.7292, 81.4180], [ 10.2869, 118.3336, 84.3468, 183.6370]]), 'labels': tensor([1, 1, 1, 1, 1, 1, 1]), 'scores': tensor([0.9674, 0.7978, 0.5249, 0.3867, 0.2823, 0.2576, 0.0500])}, {'boxes': tensor([[ 15.2346, 38.0855, 86.5071, 149.0240], [ 63.7119, 48.9329, 86.0664, 87.5123], [ 33.2000, 75.4455, 78.4895, 153.8040], [ 19.4210, 46.1877, 84.5977, 91.5905]]), 'labels': tensor([1, 1, 1, 1]), 'scores': tensor([0.3836, 0.3575, 0.1281, 0.0848])}, {'boxes': tensor([[132.1436, 6.1657, 153.0520, 62.8487], [131.2393, 41.7011, 195.3923, 168.2761], [139.3058, 48.7482, 194.3261, 116.2357], [129.5448, 3.8996, 166.7290, 68.5764], [ 14.0309, 80.1299, 141.8325, 207.4180], [148.1124, 76.1309, 194.3829, 115.8646], [153.0909, 73.1803, 193.6847, 171.0162], [122.3342, 3.2140, 154.2494, 80.4919], [ 30.8971, 88.1470, 112.4306, 178.5684], [124.3426, 6.4704, 192.4521, 119.8814]]), 'labels': tensor([1, 1, 1, 1, 1, 1, 1, 1, 1, 1]), 'scores': tensor([0.7861, 0.6424, 0.4685, 0.2317, 0.2105, 0.1900, 0.1517, 0.1080, 0.0639, 0.0583])}, {'boxes': tensor([[ 61.5898, 24.0701, 187.2649, 154.6089], [151.2988, 33.1828, 182.9017, 62.8595]]), 'labels': tensor([1, 1]), 'scores': tensor([0.4711, 0.0856])}]
boxes = outputs[0]["boxes"]
scores = outputs[0]["scores"]
print('------boxes------')
print(boxes)
print('\n')
print('------scores------')
print(scores)
------boxes------ tensor([[ 59.1766, 35.7878, 160.2520, 102.8107], [ 48.4511, 18.7178, 175.4347, 129.9121], [ 29.1291, 29.2868, 156.6243, 188.5912]]) ------scores------ tensor([0.9580, 0.4953, 0.0535])
all_preds[0]['boxes']
tensor([[ 39.0378, 19.4280, 174.5359, 136.4559], [ 67.7851, 84.0135, 143.2345, 169.7757], [ 40.7384, 21.7338, 119.9496, 112.0267], [ 85.3279, 23.2526, 165.4138, 113.2446], [ 52.8781, 55.6788, 194.7459, 171.7679], [125.6090, 28.8947, 164.5665, 55.3016]])
Non-Max Suppression (NMS)¶
font = {'size' : 6}
plt.rc('font', **font)
plt.figure(figsize=(15, 10))
i = 1
# Sample input
sample_images = all_actual[i]['image']
prediction = all_preds[i]
# Extract data
pred_boxes = prediction['boxes']
pred_labels = prediction['labels']
pred_scores = prediction['scores']
# Apply a confidence threshold
threshold = 0.2
keep = pred_scores > threshold
pred_boxes = pred_boxes[keep]
pred_labels = [classes[l.item()] for l in pred_labels[keep]]
ax1=plt.subplot(1,2,1)
#(image, bbox, label, color='red', width=1, pred_scores=None)
img = draw_multiple_bbox(sample_images, pred_boxes, pred_labels[0], color='red', pred_scores=pred_scores, width=2)
plt.imshow(img)
plt.axis("off")
plt.title(f"Predicted: {pred_labels[0]}", fontsize=16)
plt.show()
Non-Max Suppression (NMS) is a popular technique used in object detection to filter and select the most relevant bounding boxes from many overlapping predictions.
How it works:
Non-max (confidence filtering):
- Start by keeping only boxes that have a high confidence score (i.e., the model is confident they contain an object).
Suppression (overlap filtering):
- From the remaining boxes, keep the box with the highest confidence score.
- Suppress (discard) all other boxes that have a high IoU (i.e., large overlap) with this box — because they are likely duplicate detections.
- Repeat the process for the next highest confidence box, and so on.
Non-Max Suppression in PyTorch¶
In PyTorch, NMS is used to filter out redundant bounding boxes based on their confidence scores and overlap (IoU).
- Boxes: A tensor of shape
[N, 4]
, where each box is represented by 4 coordinates — typically[x1, y1, x2, y2]
(top-left and bottom-right corners). - Scores: A tensor of shape
[N]
, containing the confidence score for each bounding box (higher means more confident). - iou_threshold: A float between
0.0
and1.0
, specifying how much overlap is allowed. Boxes with IoU greater than this threshold are suppressed.
Important:
The boxes must be in the [x1, y1, x2, y2]
format for PyTorch’s nms
to work correctly.
from torchvision.ops import nms
pred_boxes = prediction['boxes']
pred_labels = prediction['labels']
pred_scores = prediction['scores']
box_indices = nms(
boxes=pred_boxes,
scores=pred_scores,
iou_threshold=0.1,
)
print(box_indices)
tensor([0])
The output indices are filtered bounding boxes
filtered_boxes = pred_boxes[box_indices]
pred_scores[box_indices]
tensor([0.9896])
pred_labels = [classes[l.item()] for l in pred_labels]
font = {'size' : 6}
plt.rc('font', **font)
plt.figure(figsize=(15, 10))
ax1=plt.subplot(1,2,1)
#(image, bbox, label, color='red', width=1, pred_scores=None)
img = draw_multiple_bbox(sample_images, pred_boxes[box_indices],
pred_labels[box_indices], color='red', pred_scores=pred_scores[box_indices], width=2)
plt.imshow(img)
plt.axis("off")
plt.title(f"Predicted: {pred_labels[box_indices]}", fontsize=16)
plt.show()
